gRPC

Remote Procedure Call (RPC) over HTTP/2 with Protocol Buffers.

What is gRPC

An open-source, high-performance RPC framework. A client calls a method on a server on a different machine as if it were a local object — gRPC handles the networking. Runs on HTTP/2, uses Protocol Buffers as its Interface Definition Language (IDL) and wire format by default.

• Home / docs: https://grpc.io/docs/what-is-grpc/introduction/
• Origin: Google’s internal Stubby, generalized and open-sourced as gRPC (2015). The “g” is a rotating backronym.

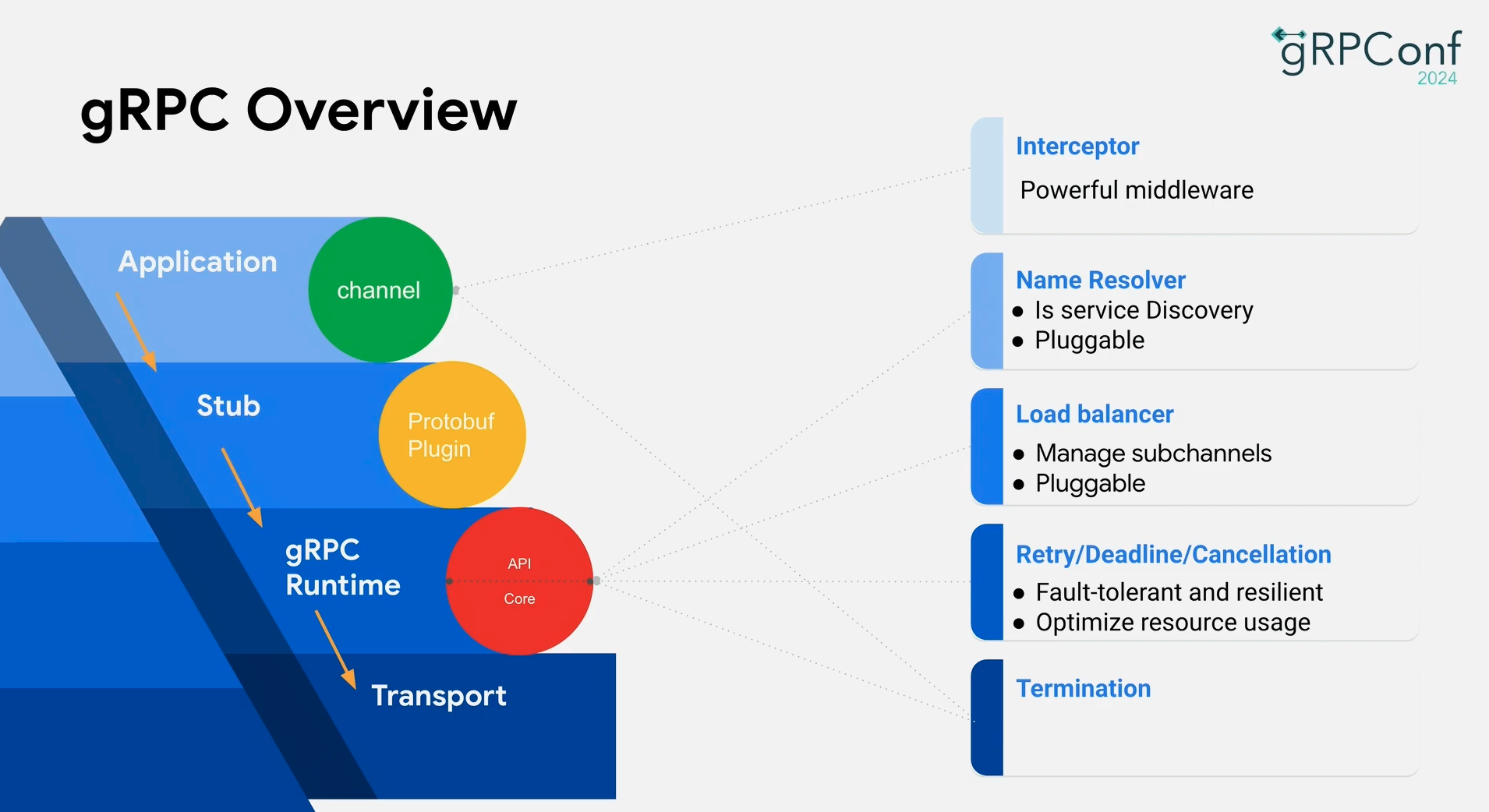

The whole architecture at a glance — the layered stack (Application → Stub → gRPC Runtime → Transport) plus the pluggable pieces this note drills into below (interceptors, name resolution / service discovery, load balancing, retry / deadline / cancellation):

Source: Ivy Zhuang’s talk — gRPC overview (gRPCConf 2024).

Start here: the Service Definition

Everything flows from the contract. gRPC is built around the idea of defining a service — specifying the methods that can be called remotely with their parameters and return types.

1. Write a .proto file — the contract (message = data shapes, service = the RPCs).
2. Run protoc (with the gRPC plugin) → generates client stubs and server interfaces in your language.
3. Server implements the interface; client calls the stub.
4. Because both sides are generated from the same .proto, they can’t drift out of sync.

Core concepts — Service definition

service HelloService {
  rpc SayHello (HelloRequest) returns (HelloResponse);
}

message HelloRequest  { string greeting = 1; }

message HelloResponse { string reply = 1; }

Protobuf’s dual role

Protocol Buffers is both:

• the IDL (Interface Definition Language) — the language you define messages and services in, and
• the serialization mechanism — a compact, strongly-typed binary format on the wire (smaller/faster than JSON text).

Use proto3 with gRPC. → https://protobuf.dev

Why the binary encoding is small

JSON ships the field names as text on every message. Protobuf ships a tag number instead, plus varint length encoding.

{"id":"123","name":"john doe"}          // JSON, ~30 bytes, names on the wire
0A 03 31 32 33 12 08 6A 6F 68 6E ...     // protobuf, ~15 bytes: <tag><len><bytes>

Each field on the wire is (field_number << 3) | wire_type. That’s why field numbers are the permanent identity of a field and renaming is free but renumbering is a breaking change.

• Encoding spec — the actual byte layout
• Proto3 language guide
• Schema evolution rules — add fields with new tags = backward compatible; never reuse a retired tag; use reserved

Four kinds of service methods

The stream keyword on the request/response side is what distinguishes them. Bidi streams are independent — order is preserved within each direction, but the two directions aren’t lock-stepped.

Core concepts — the four service methods

RPC lifecycle

Core concepts — RPC life cycle. Key topics:

• Deadlines / timeouts — client sets how long it’ll wait; server can check if it’s still worth continuing. This is a deadline (absolute point in time), propagated across hops — better than a per-hop timeout. Deadlines blog
• Cancellation — either side can cancel; ends the RPC, no more work done.
• RPC termination — client and server decide independently that the call is complete.
• Metadata — key/value info about the call, separate from the payload (auth tokens, tracing). guide
• Channels — a client’s virtual connection to a server (host/port) with configurable state (backed by ≥1 HTTP/2 connection).

Error model

gRPC has its own status codes, not HTTP status codes: OK, INVALID_ARGUMENT, NOT_FOUND, DEADLINE_EXCEEDED, UNAVAILABLE, RESOURCE_EXHAUSTED, etc. UNAVAILABLE is the retryable one.

• Status codes · richer error details (google.rpc.Status)

Interceptors (the middleware story)

Client- and server-side hooks for auth, logging, metrics, retries — the gRPC equivalent of HTTP middleware. Interceptors guide

Retries & hedging

gRPC can retry failed calls and hedge (race duplicate calls to cut tail latency) declaratively via service config — no app code. Hedging is a general distributed-systems technique, not a gRPC feature; see Request Hedging for the concept and tradeoffs. gRPC retry/hedging guide

Why HTTP/2 matters

gRPC rides on HTTP/2, which gives it:

• Multiplexing — many concurrent calls (streams) over one TCP connection; no app-layer head-of-line blocking between calls.
• Native bidirectional streaming — not just request/response.
• Binary framing — efficient, compact (pairs well with binary protobuf).
• Header compression (HPACK — Header Compression for HTTP/2) — less per-call overhead.
• Persistent connections — avoids repeated handshakes.

HTTP/2 — RFC 9113 · deeper: High Performance Browser Networking, HTTP/2 chapter (Ilya Grigorik, free online)

Where to use it

• Internal, service-to-service comms in microservices — strong typing catches errors at compile time; binary is far more efficient than JSON/HTTP (benchmarks cite up to ~10× throughput). Best when latency is network-dominated.
• Not for public-facing APIs / clients you don’t control — tooling is less ubiquitous than JSON-over-HTTP, and browsers can’t speak raw gRPC.
• Common pattern: gRPC internal, REST external.

Browser gap → gRPC-Web

Browsers can’t do raw gRPC (no access to HTTP/2 frames / trailers). gRPC-Web is a JS client + a proxy (Envoy or the standalone proxy) that translates.

• gRPC-Web · Envoy gRPC-Web filter

Load balancing gRPC (the sharp edge at scale)

A naive Layer 4 (L4, the transport layer — TCP/UDP) load balancer (LB) breaks gRPC balancing: because gRPC keeps one long-lived HTTP/2 connection and multiplexes all calls over it, connection-level (L4) balancing pins a client to one backend and every request rides that same pin. You need request-level balancing at Layer 7 (L7, the application layer — HTTP), or client-side balancing.

• gRPC has built-in client-side load balancing (pick_first, round_robin) + xDS (the discovery protocol family behind Envoy — Listener/Route/Cluster/Endpoint Discovery Service, *DS) for dynamic discovery/config from a control plane (the same API Envoy uses).
• gRPC load balancing blog · Custom LB policies · gRPC + xDS

Talks & deeper resources

(cited by title/speaker/venue; verify the exact URL before relying on it)

• Ivy Zhuang — gRPC overview — YouTube. SWE at Google & gRPC Java maintainer.
• Official gRPC guides index — auth, retries, keepalive, health checking, reflection, deadlines.

Quick self-check (recall from memory)

1. Why can’t a browser call a gRPC service directly, and what’s the fix?
2. Why does a plain L4 load balancer distribute gRPC connections fine but requests badly?
3. What’s safe vs breaking when editing a .proto? (rename field? renumber? delete?)
4. Deadline vs timeout — why does gRPC prefer deadlines across a call chain?
5. When would you pick server-streaming over just returning a repeated field?
